Brand | ASUS |
---|---|
Product Code | ROG-MAXIMUS-Z690-APEX |

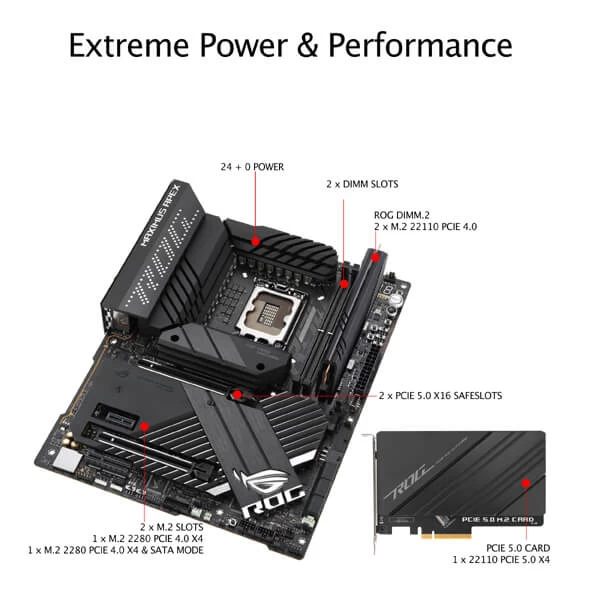

The best option for individuals looking for a combination of pure speed and cutting-edge technology like DDR5 memory, PCIe 5.0, and truckloads of power supply for the fastest 12th Gen Intel Core CPUs available is the ASUS ROG Maximus Z690 Apex Motherboard. Its simple design is built for extremely low latency and maximum bandwidth, enabling users to push the envelope of performance and set new world records.
One pass soldering is made possible by the automated manufacturing process known as “Auto-Extreme Technology,” which raises the bar for the sector. Reducing thermal stress on components and avoiding the use of strong cleaning agents, improves product reliability while also having a smaller negative impact on the environment and requiring less energy during manufacture. Both novices and experienced enthusiasts may overclock thanks to the ASUS ROG Maximus Z690 Apex Motherboard. The 12th Gen Intel processors’ increased power requirements are met by its robust power solution, and ASUS Enhanced Memory Profile technology makes it simple to boost DDR5 performance. To achieve performance, one needs a complete cooling solution.
Strong heatsinks and the ROG Water-Cooling Zone, a group of fan and sensor headers that helps regulate temperatures, are included in the ASUS ROG Maximus Z690 Apex Motherboard. The ASUS ROG Maximus Z690 Apex Motherboard offers vast M.2 slots, ultra-smooth WiFi 6E connection, and premium audio — the necessities for every configuration. With features like 5-Way Optimization and a UEFI BIOS interface, the ASUS ROG Maximus Z690 Apex Motherboard is brimming with user-friendly and adaptable tools that provide customers with next-level control over system performance. In addition to providing outstanding performance and cutting-edge technology, the ASUS ROG Maximus Z690 Apex Motherboard boosts aesthetics with extruded aluminium and subtle RGB lighting to create a genuinely unique system.
CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0* Refer to www.asus.com for CPU support list. * Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Intel® Z690 Chipset |
Memory | 2 x DIMM, Max. 64GB, DDR5 6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC) / 4800 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) *Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. |
Expansion Slots | Intel® 12th Gen Processors 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)* Intel® Z690 Chipset** 1 x PCIe 3.0 x4 slot 1 x PCIe 3.0 x1 slot * When the PCIE 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot. |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Storage | Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* Intel® 12th Gen Processors* M.2_1 slot (Key M), type 2242/2260/2280 – Intel® 12th Gen processors support PCIe 4.0 x4 mode. PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 – Intel® 12th Gen processors support PCIe 5.0 x4 mode Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. *** RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports. |
Ethernet | 1 x Intel® 2.5Gb Ethernet ASUS LANGuard |
Wireless & Bluetooth | Intel® Wi-Fi 6E Wi-Fi 6E 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. |
USB | Rear USB: Total 10 ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®) 5 x USB 3.2 Gen 2 port(s) (5 x Type-A) 4 x USB 3.2 Gen 1 port(s) (4 x Type-A) Front USB: Total 9 ports 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Gold-plated audio jacks – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Back Panel I/O Ports | 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 5 x USB 3.2 Gen 2 ports (5 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBackâ„¢ button 1 x Clear CMOS button 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Intrernal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 3 x 4-pin Chassis Fan header(s) 2 x 4-pin Full Speed Fan header(s) 1 x W_PUMP+ header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 2 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 2 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x OSC sence header 1 x Pause switch 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD header 2 x RSVD switches 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderboltâ„¢ header 1 x V_Latch switch |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Special Features | Extreme OC Kit
Extreme Engine Digi+
ASUS Q-Design
ASUS Thermal Solution
ASUS EZ DIY
AURA Sync
Dual BIOS
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W. |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Software Features | ROG Exclusive Software
ASUS Exclusive Software
TPU
MemTest86 |
ASUS MOTHERBOARD MAXIMUS Z690 APEX BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Manageability | WOL by PME, PXE |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Accessories | Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 6 x SATA 6Gb/s cables 1 x 3-in-1 Thermistor cables pack ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 PCIe 5.0 M.2 Card 1 x PCIe 5.0 M.2 Card 1 x M.2 screw package for PCIe 5.0 M.2 Card ROG True Voltician 1 x ROG True Voltician 4 x cables for ROG True Voltician Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Q-connector 2 x M.2 Q-Latch packages for M.2 backplate 1 x ROG Graphics card holder 1 x ROG key chain 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User manual |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Form Factor | ATX 30.5cm x 24.4cm |
ASUS MOTHERBOARD MAXIMUS Z690 APEX Warranty | 3 Years |
