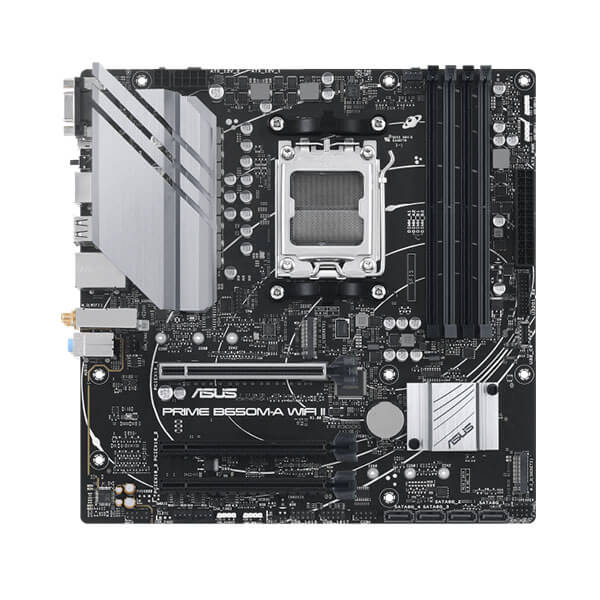

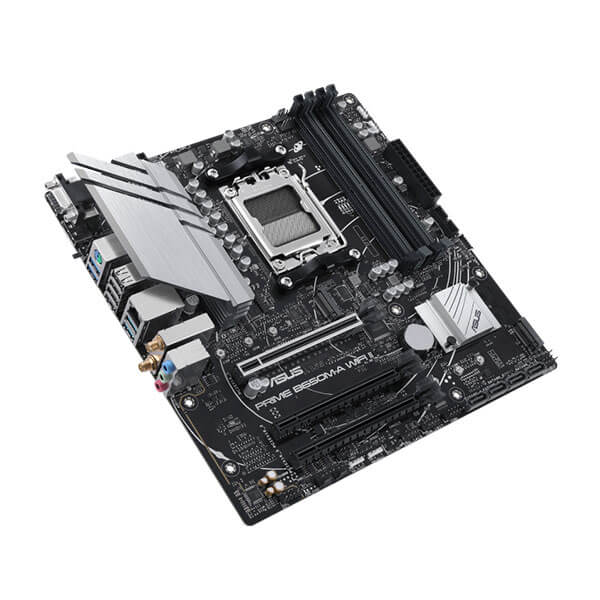

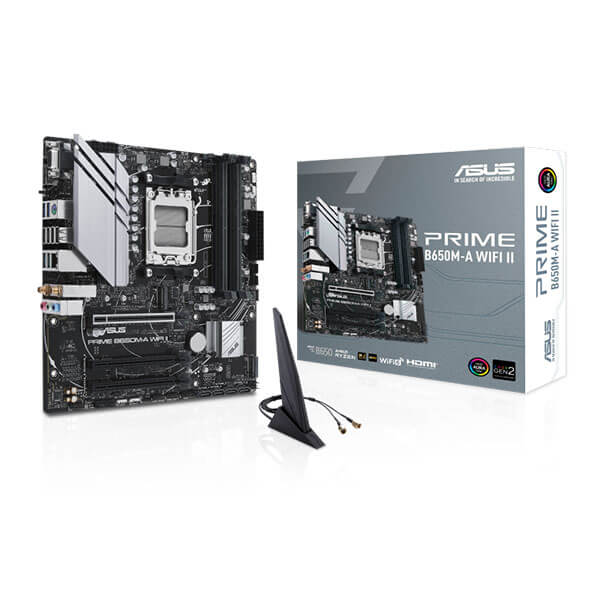

Asus Prime B650M-A WIFI II M-ATX Motherboard

• Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration
• Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

• Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI® 2.1.

• 1 x PCIe 4.0 x16 slot (supports x16 mode)

• 2 x PCIe 4.0 x16 slots (support x1 mode)

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6Gb/s ports

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback

• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers

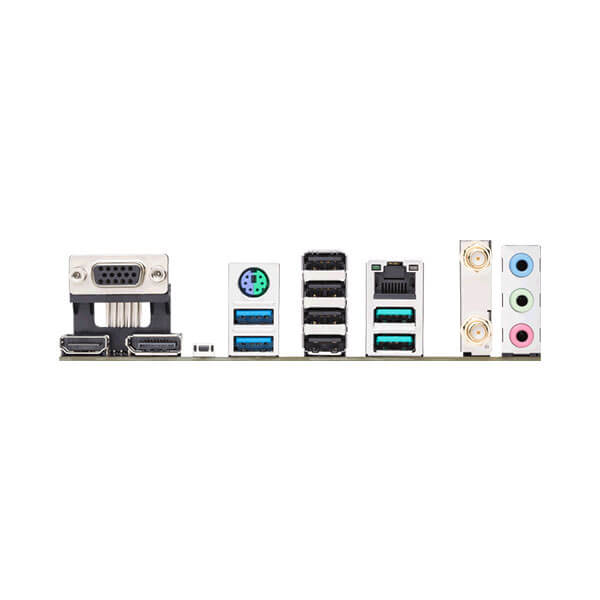

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 2 x USB 3.2 Gen 1 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x VGA port
• 1 x HDMI® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 3 x 4-pin Chassis Fan headers

Power related

• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector

Storage related

• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports

USB

• 1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
• 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header
