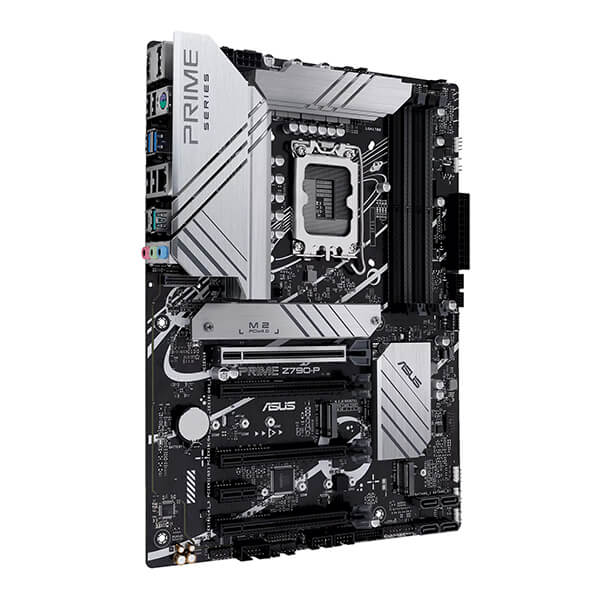

Asus Prime Z790 P CSM ATX Motherboard

• Intel® Socket LGA1700 for 14th Gen Intel® Core™ Processors, 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

1 x DisplayPort

1 x HDMI® port

Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

Intel® 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel® Z790 Chipset

3 x PCIe 4.0 x16 slots (support x4 mode)

1 x PCIe 3.0 x1 slot

Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

* Intel® 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

Intel® Z790 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Vertical M.2 slot only (Key E, CNVi & PCIe)

Wi-Fi module is sold separately.

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

Premium audio capacitors

Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

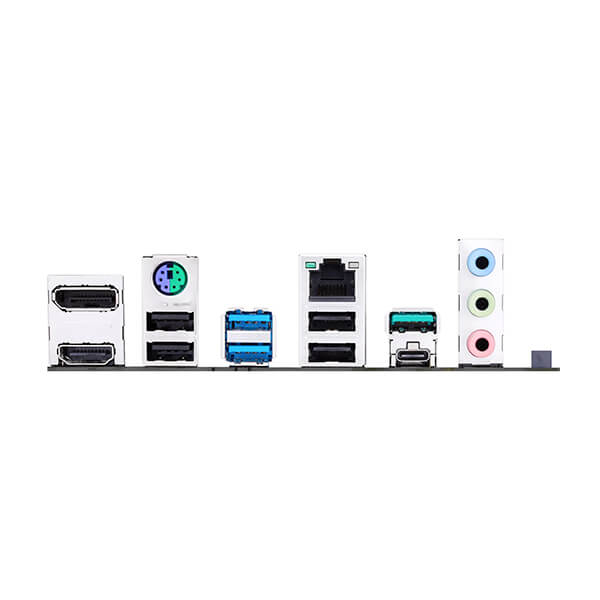

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

1 x USB 3.2 Gen 2 port (1 x Type-A)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x DisplayPort

1 x HDMI® port

1 x Vertical M.2 slot (Key E)

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

1 x 4-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

3 x Addressable Gen 2 headers

2 x Aura RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-5pin System Panel header

1 x Thunderbolt™ (USB4®) Header

ASUS 5X PROTECTION III

DIGI+ VRM (- Digital power design with DrMOS)

LANGuard

Overvoltage Protection

SafeSlot Core+

Stainless-Steel Back I/O

ASUS Q-Design

Q-DIMM

Q-Slot

Q-LED Core ASUS Thermal Solution

Flexible M.2 heatsink

VRM heatsink design

ASUS EZ DIY

ProCool Aura Sync

Aura RGB headers

Addressable Gen 2 headers

ASUS Exclusive Software

Armoury Crate

Aura Sync

Fan Xpert 4 (with AI Cooling II)

Power Saving AI Suite 3

TurboV EVO

PC Cleaner

DIGI+ VRM

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package

2 x Screw packages for M.2 SSD

Documentation

1 x ACC Express Activation Key Card

1 x User guide

ATX Form Factor

12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
