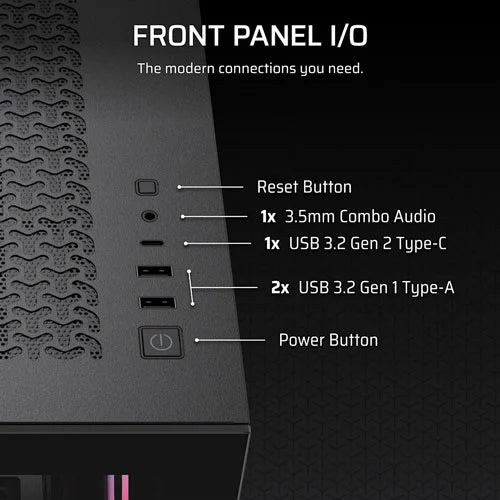

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2 Type-C Port, 2x USB 3.2 Gen 1 Type-A ports, and a combination audio/microphone jack.
- Reset Button
- Headphone / Mic Combo Jack
- USB 3.2 Gen 2 Type-C Port
- 2x USB 3.2 Gen 1 Type-A Ports
- Power Button
Case Supported:Â Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

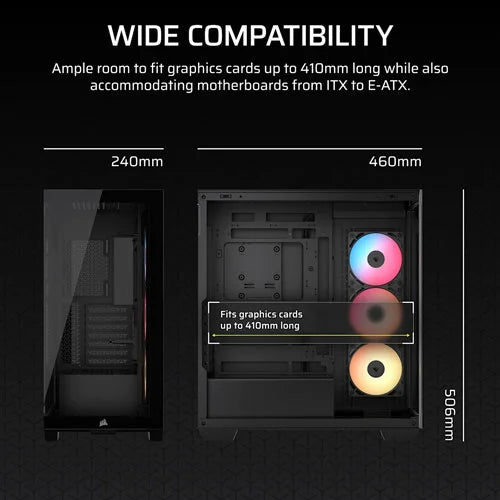

Case Height: 506
Case Length: 460
Case Width: 240
Material:Â Steel, Tempered Glass
Case Size:Â Mid-Tower

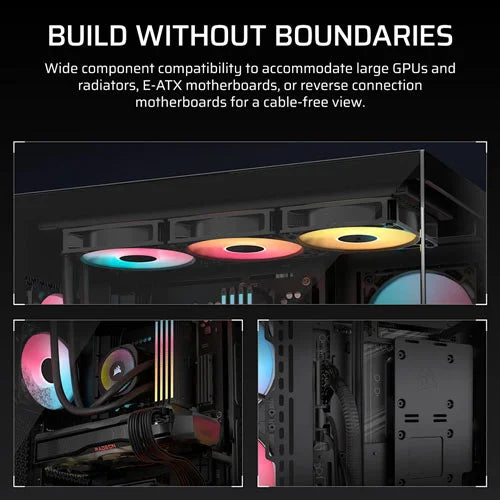

Radiator Compatibility:Â 120mm, 140mm, 240mm, 280mm, 360mm
Case Window:Â Tempered Glass
Compatible Liquid Coolers:Â H60, H100, H115, H150 (All Series)]
Internal 3.5" Drive Bays: 2
Internal 2.5" Drive Bays: 2
Maximum CPU Cooler Height: 170mm
Maximum PSU Length: 180mm
Case Front IO:Â (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out
Maximum GPU Length:Â 425mm
Weight:Â 10.66kg
Case Expansion Slots:Â 7 Horizontal (or 4 Vertical)
Case Power Supply: ATX

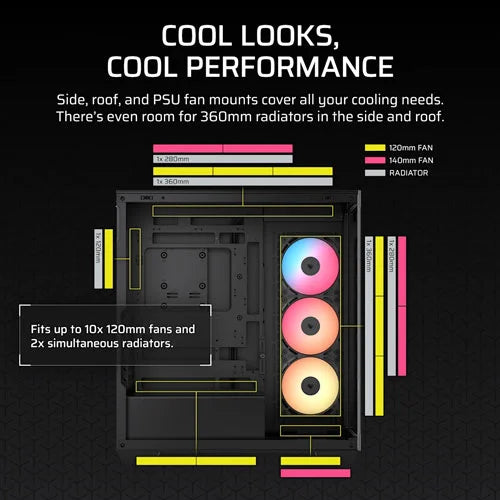

Radiator Support - Top:Â 360mm, 280mm, 240mm
Radiator Support - Front:Â None
Radiator Support - Bottom:Â None
Radiator Support - Side:Â 360mm, 280mm, 240mm
Radiator Support - Rear:Â 1x 120mm
Fan Support - Top:Â 3x 120mm; 2x 140mm
Fan Support - Front:Â None
Fan Support - Bottom:Â 3x 120mm; 1x 140mm
Fan Support - Side:Â 3x 120mm; 2x 140mm
Fan Support - Rear:Â 1x 120mm
Front IO Motherboard Connections:Â 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL
Reverse Connector Motherboard Support:Â Yes

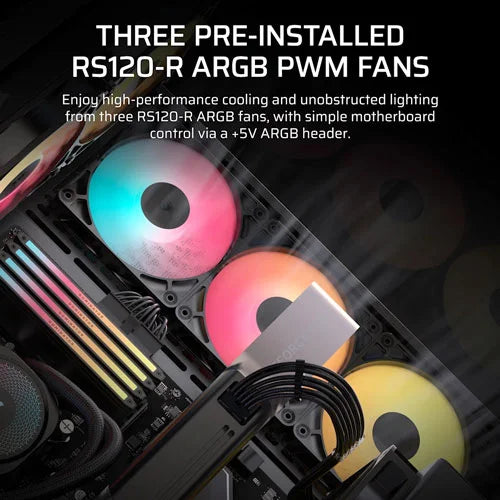

Included Fans:Â RS ARGB Series

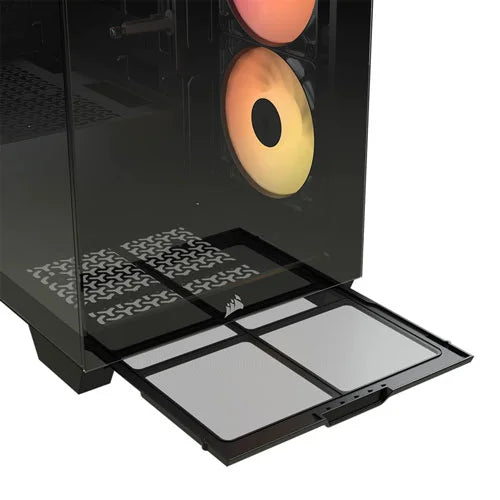

Dust Filtration:Â Yes

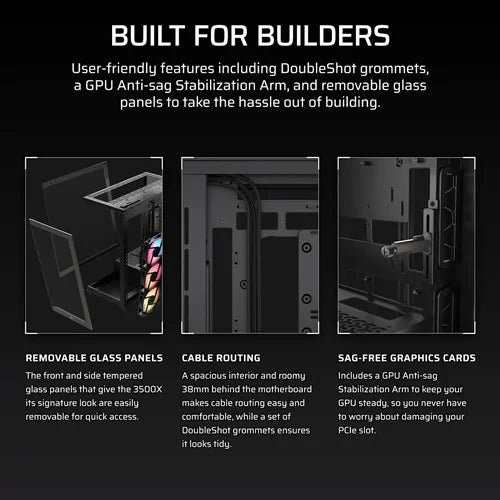

Cable Routing Space:Â 45mm
RapidRoute Included:Â Compatible (Sold Separately)
Left Side Panel:Â Tempered Glass
Right Side Panel:Â Steel
Vertical Mount Support:Supported (Riser Card Sold Separately)
