Features:
-
Product Dimensions: 127×144×159 mm(L×W×H)
-
Heatsink Dimensions: 125×115×153 mm(L×W×H)
-
Heatpipe: Ø6 mm×6 pcs
-
Fan Dimensions: 120×120×25 mm(L×W×H)
-
Fan Speed: 2000±10% RPM(max)
-
Fan Airflow: 57.76 CFM
-
Fan Air Pressure: 2.78 mmAq
-
Fan Noise: ≤28.87 dB(A)
-
Fan Connector: 4-pin PWM
-
Bearing Type: Hydro Bearing
-
Fan Rated Voltage: 12 VDC
-
Fan Rated Current: 0.19 A
-
Fan Power Consumption: 2.28 W
-
Display Module Rated Current: 0.13 A±10%
-
Display Module Rated Voltage: 5 VDC
-
Display Module Power Consumption: 0.65 W
-
Display Area: 29x39 mm

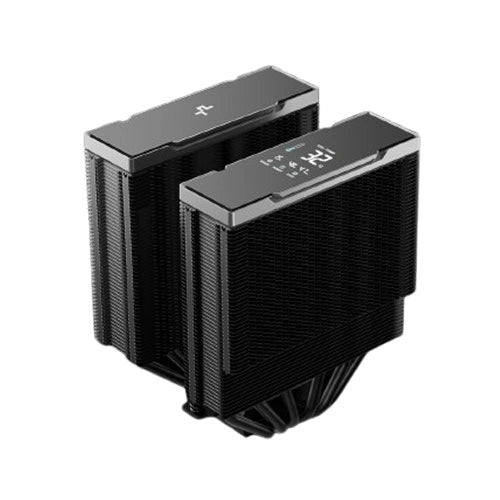

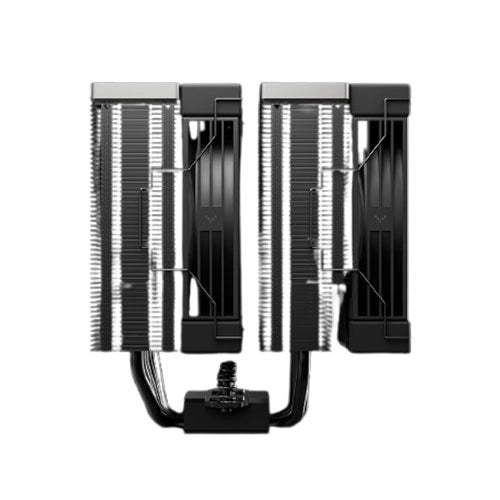

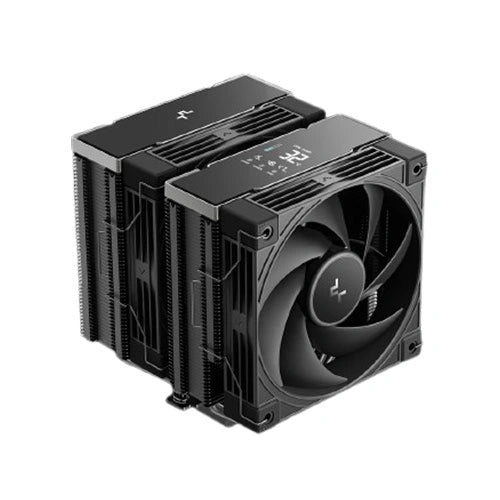

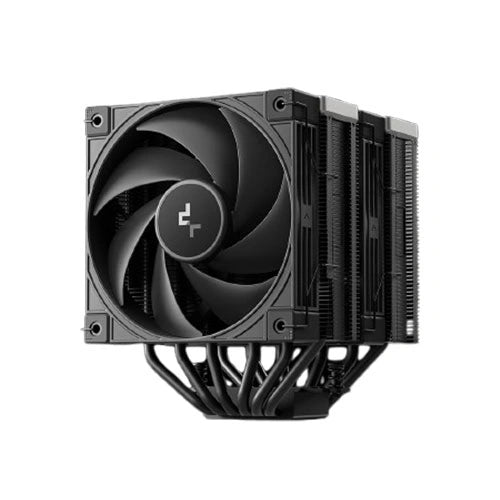

DeepCool AK620 G2 DIGITAL NYX
Further improved second generation of the iconic AK DIGITAL lineup with upgraded performance and a bold new aesthetic. It features six advanced copper heat pipes, a dense dual-tower heatsink, newly designed silent fans, and now sports a high-end quad-segmented digital display that delivers elite cooling backed by upgraded tech and real-time insight.
AI-TUNED CHILL. POWERED BY DeepCreative
With the upgraded DeepCreative interface, one click replaces BIOS tinkering — DeepCreative’s proprietary AI-driven algorithm tracks CPU load in real time to automatically match the optimal fan speed curve. This ensures perfect harmony between powerful cooling and whisper-quiet operation, all without lifting a finger.
NEXT GENERATION PERFORMANCE
Thanks to DeepCool’s latest Core Touch Technology (CTT 2.0) and an optimized tower design, the AK620 G2 DIGITAL NYX combines improved performance with a slightly smaller size compared to its predecessor.
THE DIGITAL TOUCH
The standout addition of the AK620 G2 DIGITAL NYX is the enhanced quad-segmented display that monitors the temperature, usage, wattage, and frequency of your CPU. The display is controlled via DeepCool software and only requires an open USB 2.0 header.
PROVEN AK DESIGN

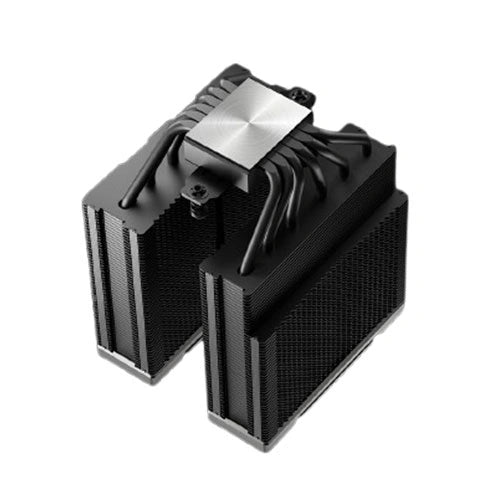

The AK620 G2 DIGITAL NYX continues its legacy by featuring a precision-machined copper base and six copper heat pipes that deliver improved heat transfer capabilities. The signature matrix fin array in a dual tower heat sink layout offers better efficiency for high performance systems.
COOL, QUIET, AND POWERFUL
Equipped with high-quality hydraulic bearings and a three-phase, six-slot, four-pole motor, the AK620 G2 DIGITAL NYX's fans operate smoothly and quietly.
- 0-RPM Startup/Stop effectively reduces noise and prolongs fan lifespan.
- Activate Clearing Tech (ACT) within 8 seconds of power-on to initiate automatic dust clearing for both the fan blades and heatsink.
- Full load noise: 28.87 dBA
- Fan Speed: 2000±10%PRM
- Dynamic PWM Range: 0 RPM＜5% PWM
MULTI-PLATFORM PERFORMANCE
The all-metal mounting bracket kit ensures sturdy, easy installation on both Intel and AMD platforms, offers an offset mounting solution for multi-platform systems, and comes complete with additional tools.
