Features:
- Supports Nvidia GeForce RTXTM 50 series graphics cards
- Native 12V-2x6 connector
- Dual-color 12V-2x6 cable
- 80 PLUS Gold certified
- Optimized the sound level
- Main 105°C capacitor
- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Featuring ATX 3.1 and PCIe 5.1 support with native 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
The power supply features the latest 12V-2x6 (H++) connector, designed with an optimized structure that complies with the PCIe CEM 5.1 standard. The ensures enhanced reliability and safety. It is capable of
delivering up to 600W of power, making it suitable for even the most demanding high-end graphics cards.
Ultimate Proof PSU
It has an output port that is compliant with Intel PSDG (Power Supply Design Guide) ATX 3.1,the power supply can hold up to 220% total power excursion and 3x GPU power excursion.
Gold Efficiency Certification
The efficiency of your power supply significantly impacts overall power consumption. The Gold certification stands out as a reliable benchmark for energy efficiency, ensuring that your power supply delivers lower energy consumption and operates at higher efficiency levels.
Midnight Sound Level
This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances.

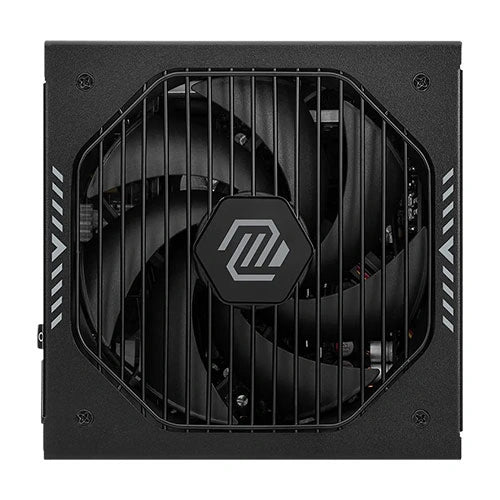

Fluid Dynamic Bearing
This power supply comes with 135 mm fluid dynamic bearing fan, chosen to increase the life span of the fan while maintaining low noise level.
Alloy Copper Connector Terminals
The cable connectors are made of copper alloy terminals so that the power supply will be safer when there is a higher surge in current.
Built for Maximum Safety
The power supply's cables, from the internal copper wires to the external high-density braided cover, are fully UL certified, ensuring superior safety and durability.
-
Efficiency Rating: 80 PLUS Gold (up to 90%)
-
Modular: Yes (full modular)
-
Fan Size: 135 mm
-
Fan Bearing: Fluid Dynamic Bearing
-
Dimensions (DxWxH): 150 x 150 x 86 mm
-
PFC Type: Active PFC
-
Input Voltage Range: 100-240V~
-
Power Watt: 1000W
-
Power Excursion: 2200W (*up to 220% of the PSU's rated power for 100μs)
-
Input Frequency Range: 47-63 Hz
-
Protection: OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
-

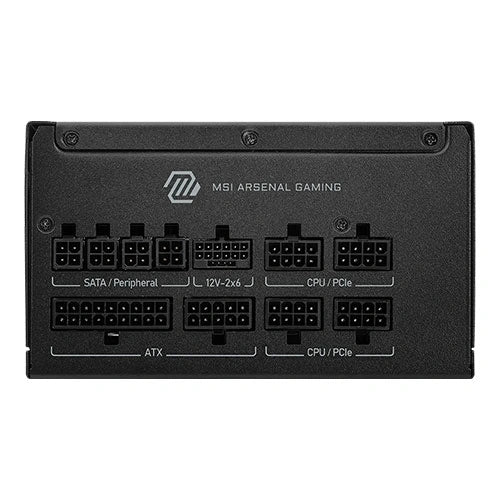

ATX (24 pin): 1
-
EPS (8 pin): 1
-
EPS (4+4 pin): 1
-
PCI-E 5.1 (16 pin): 1
-
PCI-E (6+2 pin): 4
-
SATA (15 pin): 11
-
PERIPHERAL (4 pin): 4
-
FDD (4 pin): 1
